  •   Hikvision fisheye DS-2CD6365G0-IS(B) F1.27

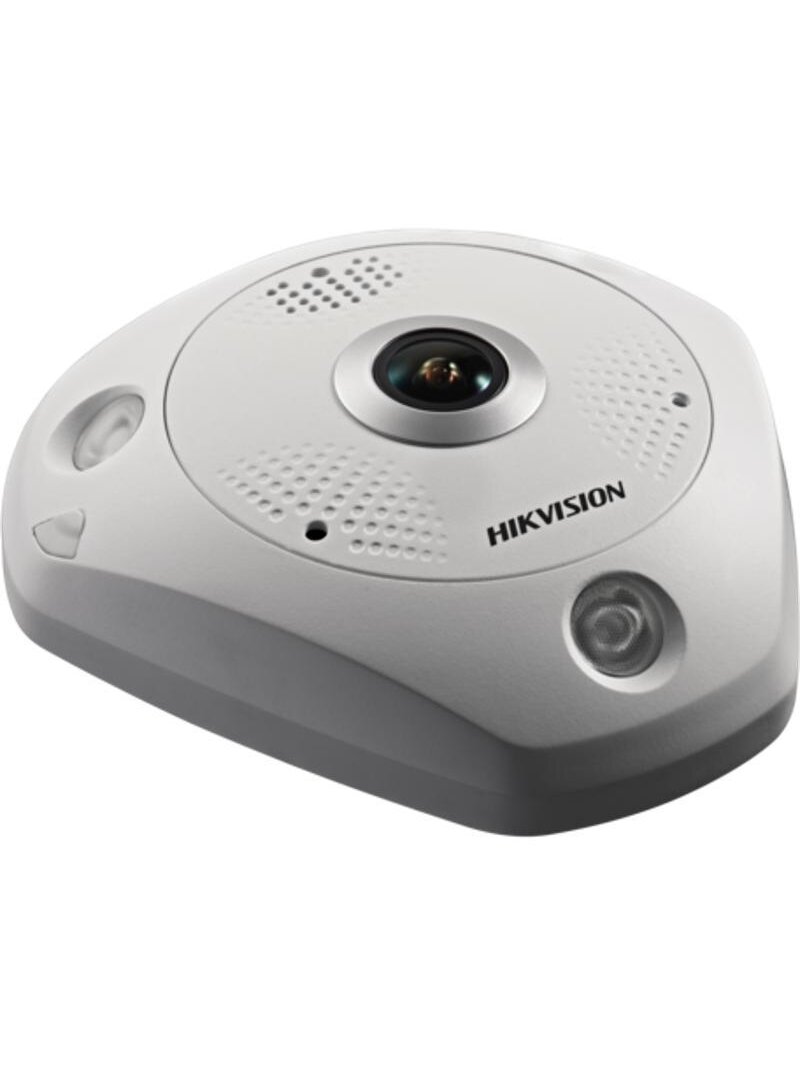

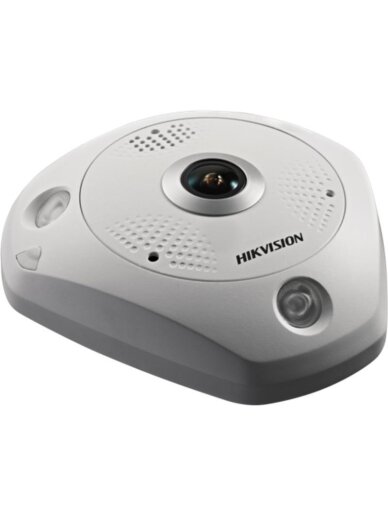

    Hikvision fisheye DS-2CD6365G0-IS(B) F1.27

    Pasiteirauti apie prekę
    Kaina 681.00 €
    Likutis: 0 vnt.
    • 6MP Fish-eye IP kamera
    • Heat map
    • 120 dB WDR
    • Iki 15 m IR apšvietimas
    • Įmontuotas mikrofonas ir garsiakalbis
    • Vidaus kamera
  • Prekės aprašymas
    • Kamera
    • Sensorius1/1.8" Progressive Scan CMOS
    • Maks. rezoliucija3072 × 2048
    • Min. apšvietimasColor: 0.047 Lux @ (F2.6, AGC ON), B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR
    • Užrakto greitis1 s to 1/100,000 s
    • Day & NightIR Cut Filter
    • Lęšis
    • Focal Length & FOV1.27 mm, horizontal FOV 180° (wall mount), 360° (ceiling mount), 360° (table mount)
    • Lęšio montavimasM12
    • DiafragamaF2.6
    • DORI
    • DORID: 21.3 m, O: 8.5 m, R: 4.3 m, I: 2.1 m
    • Apšvietimas
    • Papildomo apšviešimo tipas3 IR LEDs, each LED is independently controlled
    • Papildomo apšvietimo diapazonasUp to 15 m
    • IR bangos ilgis850 nm
    • Vaizdas
    • Pagrindinis srautas

      Fisheye View:

      50 Hz: 25 fps (3072 × 2048, 2048 × 2048, 1280 × 1280)

      60 Hz: 30 fps (3072 × 2048, 2048 × 2048, 1280 × 1280)

      180 Panorama View:

      50 Hz: 25 fps (2048 × 1536, 1920 × 1080)

      60 Hz: 30 fps (2048 × 1536, 1920 × 1080)

      Panorama View:

      50 Hz: 25 fps (2048 × 1536, 1920 × 1080)

      60 Hz: 30 fps (2048 × 1536, 1920 × 1080)

      4PTZ:

      50 Hz: camera 01: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)

      camera 02: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)

      t camera 03: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)

      t camera 04: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)

      60 Hz: camera 01: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)

      t camera 02: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)

      t camera 03: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)

      t camera 04: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)

      Fisheye + 3PTZ:

      50 Hz: camera 01: 25 fps (2048 × 2048, 1024 × 1024)

      t camera 02: 25 fps (1024 × 768)

      t camera 03: 25 fps (1024 × 768)

      t camera 04: 25 fps (1024 × 768)

      60 Hz: camera 01: 30 fps (2048 × 2048, 1024 × 1024)

      t camera 02: 30 fps (1024 × 768)

      t camera 03: 30 fps (1024 × 768)

      t camera 04: 30 fps (1024 × 768)

      4PTZ Fusion:

      50 Hz: 25 fps (2048 × 1536, 1600 × 1200, 1280 × 960, 1024 × 768)

      60 Hz: 30 fps (2048 × 1536, 1600 × 1200, 1280 × 960, 1024 × 768)

    • Antrinis srautas

      Fisheye View:

      50 Hz: 25 fps (720 × 720, 720 × 480)

      60 Hz: 30 fps (720 × 720, 720 × 480)

      180 Panorama View:

      50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

      60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

      Panorama View:

      50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

      60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

      Fisheye + 3PTZ:

      50 Hz: camera 01: 25 fps (720 × 720)

      60 Hz: camera 01: 30 fps (720 × 720)

    • Vaizdo suspaudimas

      Main stream: H.265+/H.265/H.264+/H.264

      Sub stream: H.265/H.264/MJPEG

    • Vaizdo bitų greitis32 Kbps to 16 Mbps
    • H.264 tipasBaseline Profile/Main Profile/High Profile
    • H.265 tipasMain Profile
    • Scalable Video Coding (SVC)H.265 and H.264 encoding
    • Region of Interest (ROI)4 fixed regions for main stream and sub-stream
    • Fisheye rodymas
    • Montavimo tipasSupport table, wall, and ceiling mounting
    • Decoding ModeSupport hardware decoding and software decoding
    • Display Mode

      18 display modes in total

      Software decoding:

      Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, half sphere, cylinder

      Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ

      Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, cylinder

      Hardware decoding:

      Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

      Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

      Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

    • Garsas
    • Garso tipasMono sound
    • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM
    • Garso bitų greitis64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)
    • Garso atrankos dažnis8 kHz/16 kHz
    • Pašalinių garsų šalinimasYes
    • Internetas
    • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
    • Tiesioginis vaizdo žiūrėjimasUp to 20 channels
    • APIOpen Network Video Interface (PROFILE S, PROFILE G), ISAPI
    • User/HostUp to 32 users. 3 user levels, administrator, operator and user
    • SaugumasPassword protection, HTTPS encryption, IEEE 802.1X port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
    • Vidinė atmintisNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
    • KlientasiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
    • NaršyklėChrome 57+, Firefox 52+, Safari 12+
    • Nuotrauka
    • Nuotraukos nustatymaiSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
    • Diena/Naktis režimasDay/Night/Auto/Schedule/Triggered by Alarm In
    • Wide Dynamic Range (WDR)Digital WDR
    • Nuotraukų pagražinimasBLC, HLC, defog, 3D DNR
    • Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
    • Sąsaja
    • Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
    • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
    • Įmontuotas mikrofonasYes,two built-in microphone(s)
    • Įmontuotas garsiakalbisYes
    • Garsas

      1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

      1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium

    • Signalizacija1 input, max. 12 V; 1 output, max 24 VDC, 1 A
    • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • Perkrovimo mygtukasYes
    • Funkcijos
    • Pagrindinės funckcijosMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
    • Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
    • Sąsaja

      Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,

      *For people counting, heat map, and intersection analysis, only notifying surveillance center is supported.

    • Išmaniosios funkcijos
    • Žmonių skaičiavimas

      Counts people entering, exiting and passing by separately

      Supports real-time uploading and uploading by statistic cycle

      Sends email reports on daily, weekly, monthly or annually basis

      Supports target filtering by height

    • Karščio žemėlapis

      A graphic description of visits (calculated by people number or by dwell time) in a configured area.

      Two heap map report types are available, space heat map and time heat map line chart

    • Susikirtimų analitika

      Detects and analyze flow in an intersection-like scene, and generate reports

      Support one intersection of up to 10 ways

    • Pagrindinis
    • Sistemos parametrai

      12 VDC ± 25%, 0.9 A, max. 11 W, two-core terminal block

      PoE: 802.3af, class 0, 36 to 57 V, 0.34 A to 0.22 A, max. 12.95 W

    • Medžiaga

      Main body: Metal

      Cover: Plastic

    • Dydis167.4 mm × 152.8 mm × 50 mm (6. 6" × 6" × 2")
    • Pakuotės dydis260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
    • SvorisApprox. 720 g (1.6 lb.)
    • Svoris su įpakavimu

      Approx. 1.3 kg (2.9 lb.)

    • Darbo sąlygos-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
    • Kalba

      33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

    • Pagrindinės funkcijosOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
    • ŠildytuvasYes
    • Patvirtinimai
    • EMC

      FCC: 47 CFR Part 15, Subpart B,

      CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

      RCM: AS/NZS CISPR 32: 2015,

      IC: ICES-003: Issue 7,

      KC: KN32: 2015, KN35: 2015

    • Saugumas

      UL: UL 62368-1,

      CB: IEC 62368-1: 2014+A11,

      CE-LVD: EN 62368-1: 2014/A11: 2017,

      BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

      LOA: IEC/EN 60950-1

    • Aplinkosauga

      CE-RoHS: 2011/65/EU,

      WEEE: 2012/19/EU,

      Reach: Regulation (EC) No 1907/2006
