  •   Hikvision DS-2XC6142FWD-IS(C) (atspari sprogimams)

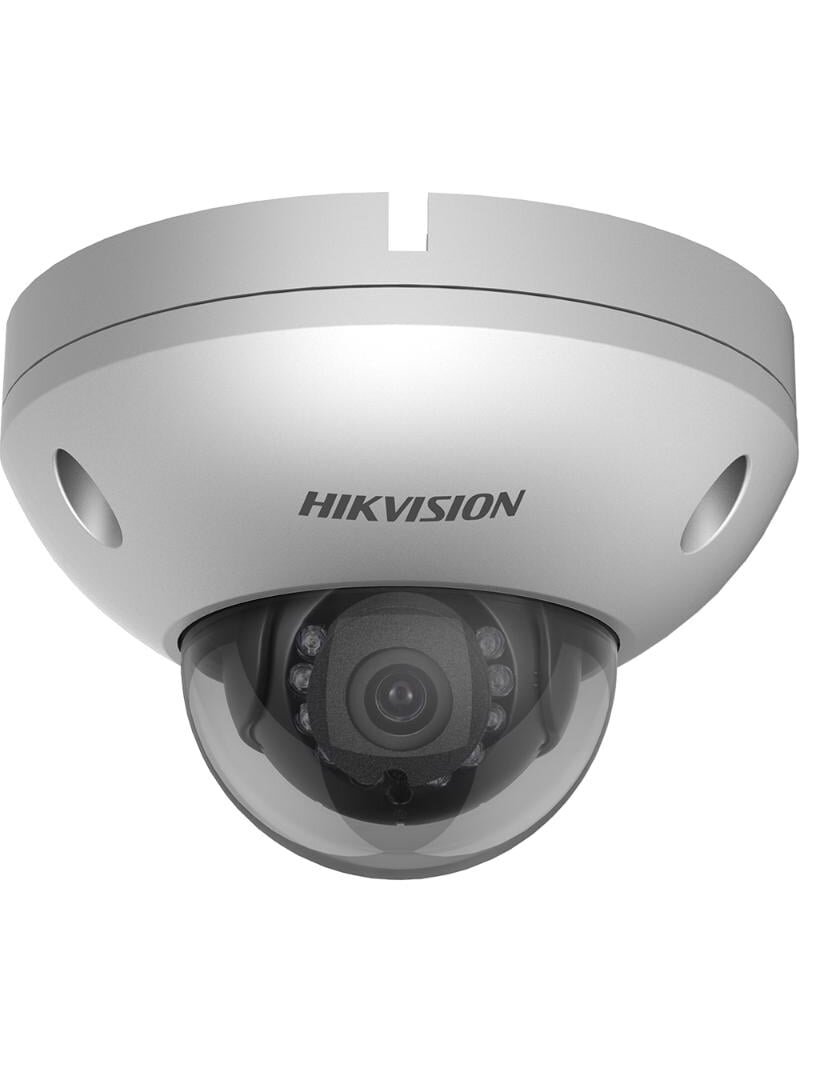

    Hikvision DS-2XC6142FWD-IS(C) (atspari sprogimams)

    Pasiteirauti apie prekę
    Kaina 652.01 €
    Likutis: 0 vnt.
    • 4MP kamera
    • H.265+/H.265
    • IP67
    • 120dB WDR
  • Prekės aprašymas
    • Kamera
    • Sensorius1/3" Progressive Scan CMOS
    • Maks. rezoliucija2688 × 1520
    • Min. apšvietimas

      Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR

      B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR

    • Užrakto greitis1/3 s to 1/100,000 s
    • Day & NightIR cut filter
    • Kampo keitimasPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
    • Lęšis
    • Lęšio tipasFixed focal lens, 2.8 mm, 4 mm, and 6 mm optional
    • Focal Length & FOV

      2.8 mm, horizontal FOV 98.5°, vertical FOV 52.8°, diagonal FOV 116.2°

      4 mm, horizontal FOV 78.8°, vertical FOV 40.5°, diagonal FOV 92.8°

      6 mm, horizontal FOV 49.1°, vertical FOV 26.3°, diagonal FOV 57.2°

    • Lęšio montavimasM12
    • DiafragamaF1.6
    • DORI
    • DORI

      2.8 mm, D: 54.6 m, O: 21.7 m, R: 10.9 m, I: 5.5 m

      4 mm, D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m

      6 mm, D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m

    • Apšvietimas
    • Papildomo apšviešimo tipasIR
    • Papildomo apšvietimo diapazonasUp to 15 m
    • Vaizdas
    • Pagrindinis srautas

      50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

      60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    • Antrinis srautas

      50 Hz: 25 fps (640 × 480, 640 × 360)

      60 Hz: 30 fps (640 × 480, 640 × 360)

    • Trečias srautas

      50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    • Vaizdo suspaudimas

      Main stream: H.265+/H.265/H.264+/H.264

      Sub-stream: H.265/H.264/MJPEG

      Third stream: H.265/H.264

    • Vaizdo bitų greitis32 Kbps to 8 Mbps
    • H.264 tipasBaseline Profile/Main Profile/High Profile
    • H.265 tipasMain Profile
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)5 fixed regions for each stream
    • Internetas
    • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
    • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
    • APIOpen Network Video Interface, ISAPI, ISUP 5.0
    • User/Host

      Up to 32 users

      3 levels: Administrator, Operator and User

    • Vidinė atmintisNAS (NFS, SMB/CIFS), ANR
    • KlientasiVMS-4200, Hik-Connect
    • Naršyklė

      Plug-in required live view: IE10, IE11

      Local service: Chrome 57.0+, Firefox 52.0+

    • Nuotrauka
    • Nuotraukos parametrų keitiklisYes
    • Nuotraukos nustatymaiRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
    • Diena/Naktis režimasDay, Night, Auto, Schedule
    • Wide Dynamic Range (WDR)120 dB
    • Nuotraukų pagražinimasBLC, HLC, 3D DNR, defog
    • Sąsaja
    • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
    • Vidinė atmintis

      Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB

      *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

    • Signalizacija1 alarm input, 1 alarm output
    • Funkcijos
    • Pagrindinės funckcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
    • Išmaniosios funkcijos

      Line crossing detection, intrusion detection, region entrance detection, region exiting detection

      Scene change detection, unattended baggage detection, object removal detection

    • Pagrindinis
    • Sistemos parametrai

      12 VDC, 0.4 A, max. 5 W, two-core terminal block

      PoE (802.3af, Class 3, 36 V to 57 V), 0.1 A

    • Medžiaga316L and anti-corrosion coating
    • DydisØ113 mm × 77.3 mm (4.45" × 3.04")
    • Pakuotės dydis257 mm × 167 mm × 145 mm (10.12" × 6.57" × 5.71")
    • SvorisApprox. 1500 g (3.3 lb.)
    • Svoris su įpakavimuApprox. 1900 g (4.2 lb.)
    • Darbo sąlygos-30°C to +60 °C (-22 °F to +140 °F). Humidity less than 95% (non-condensing)
    • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • Pagrindinės funkcijosHeartbeat, password protection, privacy mask, watermark, IP address filter, mirror
    • Patvirtinimai
    • EMC

      FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)

      CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013)

      RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015

      IC: IC-VoC (ICES-003 Issue 7:2020)

      KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)

    • Saugumas

      UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014

      CB: IEC 62368-1:2014

      BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015

      LOA: SANS IEC60950-1

    • AplinkosaugaCE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
    • ApsaugaIP67 (IEC 60529-2013)
    • Apsauga nuo korozijos

      WF2, NEMA-4X

      C5-M: 720H neutral salt spray, 480H water condensation;

      Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity;

      Interior environments: buildings or areas with almost permanent condensation and with high pollution.
