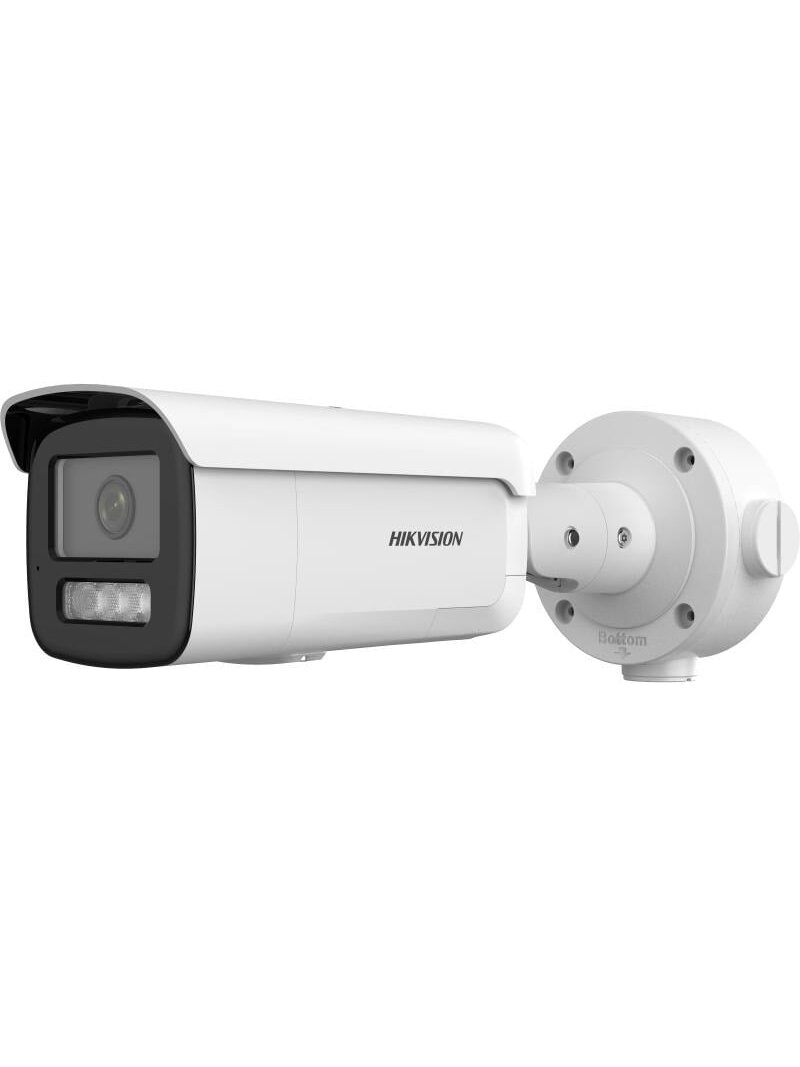

  •   Hikvision bullet DS-2CD3T46G2-ISU/SL F.2.8 (balta, 4 MP, 60 m. IR, 120dB WDR)

    Hikvision bullet DS-2CD3T46G2-ISU/SL F.2.8 (balta, 4 MP, 60 m. IR, 120dB WDR)

    Pasiteirauti apie prekę
    Kaina 342.19 €
    Likutis: 0 vnt.
    • Palaiko Hikvision Embedded Open Platform (HEOP) ir trečiųjų šalių aplikacijas
    • Našumas: 1.5 TOPS, 60 MB sisteminė atmintis, 400 MB Smart RAM, 2 GB eMMC
    • Raiška: 4 MP
    • Technologija: H.265+, DarkFighter
    • Vaizdo formatas: WDR 120 dB
    • Funkcijos: žmonių ir transporto priemonių atpažinimas
    • Integruotas stroboskopas ir garso aliarmas
    • Integruotas dvipusis garsas
    • Apsaugos klasė: IP67
  • Prekės aprašymas
    • Patvirtinimai
    • EMCFCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
    • AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
    • ApsaugaIP67: IEC 60529-2013
    • SaugumasUL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
    • Garsas
    • Garso bitų dažnis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Pašalinių garsų šalinimasYes
    • Camera
    • Kampo keitimasPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
    • Diena&NaktisIR cut filter
    • Vaizdo jutiklis1/3" Progressive Scan CMOS
    • Didžiausia raiška2688 × 1520
    • Minimalus apšvietimasColor: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
    • Užrakto greitis1/3 s to 1/100,000 s
    • DORI
    • DORI2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m6 mm: D: 126 m, O: 50 m, R: 25 m, I: 12 m
    • Išmaniosios funkcijos
    • Veido atpažinimasYes
    • Žmonių skaičiavimasYes
    • Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
    • Funkcijos
    • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
    • SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
    • Išmaniosios funkcijos scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
    • Bendra informacija
    • MatmenysØ325.5 mm × 105 mm (Ø12.8" × 4.1")
    • Pagrindinės funkcijosHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
    • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • MedžiagaMetal
    • Pakuotės dydis386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
    • Maitinimas 12 VDC ± 25%, 0.95 A, max. 11.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3at, Class 4, max. 13.5 W
    • Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • SvorisApprox. 1200 g (2.4 lb.)
    • Svoris su įpakavimuApprox. 1904 g (3.5 lb.)
    • HEOP
    • Computing Power1.5 TOPS
    • Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle, ONNX
    • Open CapabilityHEOP 2.0 OpendevSDK
    • Open ResourcesMemory: 60 MB,Smart RAM: 400 MB,eMMC: 2 GB
    • Programming LanguageC,C++
    • Apšvietimas
    • IR bangos ilgis850 nm
    • Išmanus papildomas apšvietimasYes
    • Papildomo apšvietimo diapazonasUp to 60 m
    • Papildomo apšviešimo tipasIR
    • Nuotrauka
    • Dienos/nakties perjungiklisDay,Night,Auto,Schedule
    • Nuotraukų pagražinimasBLC,HLC,3D DNR,Defog
    • Nuotraukos parametrų keitiklisYes
    • Vaizdo nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
    • Privatumo kaukė4 programmable polygon privacy masks
    • SNR≥ 52 dB
    • Wide Dynamic Range (WDR)120 dB
    • Sąsaja
    • Alarm Visual alarm,2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
    • Garsas1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
    • Integruotas mikrofonasYes
    • Integruotas garsiakalbisMax. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
    • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
    • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
    • Perkrovimo mygtukasYes
    • Objektyvas
    • DiafragmaF1.4
    • Focal Length & FOV2.8 mm, horizontal FOV 101°, vertical FOV 54°, diagonal FOV 122°4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 64°
    • Rainelės tipasFixed
    • Objektyvo tvirtinimasM12
    • Objektyvo tipasFixed focal lens, 2.8, 4, and 6 mm optional
    • Tinklas
    • APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
    • KlientasiVMS-4200,Hik-Connect,Hik-Central
    • Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
    • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
    • SaugaPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
    • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
    • Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
    • NaršyklėPlug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
    • Vaizdas
    • Bitų dažnio valdymasCBR,VBR
    • Ketvirtas srautas50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
    • H.264 tipasBaseline Profile,Main Profile,High Profile
    • H.265 tipasMain Profile
    • Pagrindinis srautas50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    • Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Antrinis srautas50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
    • Tikslinis apkarpymasYes
    • Trečias srautas50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • Vaizdo bitų dažnis32 Kbps to 8 Mbps
    • Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG
    • e-PTZSupport Patrol and Auto Tracking settings
